1. Product introduction of YFW series

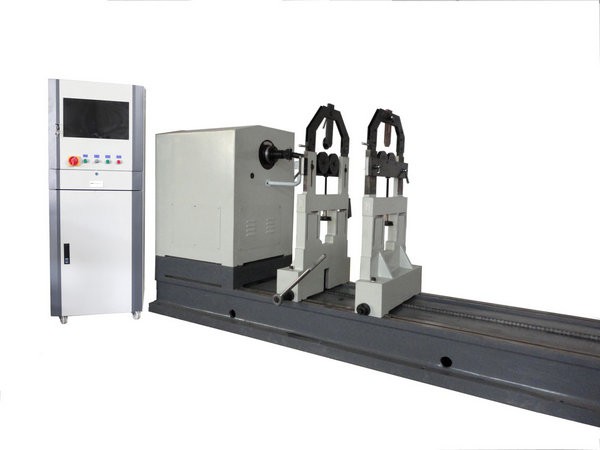

YFW series fan special balancing machine belongs to universal joint balancing machine this kind of special balancing machine, is to adapt to the large diameter of the fan inertia and large damping, and when the fan is rotating to the air kinetic energy through the wind channel and a series of characteristics of the motor power and transmission mechanism for re-matching. Of course, other universal joint balance function balance of the workpiece this series of balancing machine can also balance.
2. Measurement system
Industrial control computer, 19 "LCD display (can be customized with touch screen), Windows operating platform
★ with the company's independent development of balance measurement system. General software functions cover all the functions of the domestic mainstream balancing machine software, the operation of all the use of Chinese menu structure, operating steps text prompt; Special software includes: all kinds of automatic balancing machine software, with the function of tracking the Angle of the software, with the function of automatic positioning software, transmission shaft multi-axis joint school software
★ measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability, high deweighting rate and separation ratio, high sensitivity
★ software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece
★ software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)
3. Mechanical parts and controls
★ swing drive and bed casting, enough rigidity and stability; Swing driving resistance to static pressure is strong, under the premise of sufficient device driving capacity can generally overload more than 20 percent
★ the roller on the balance machine is made of bearing steel, the overall salt bath quenching hardness reached HRC55 above; After grinding the support surface of the roller, the radial runout of the polishing is small, and the roller bearing is arranged to make the workpiece run more smoothly and the interference to the measurement signal is lower
★ swing frame can move along the bed and can be parked in any part of the bed above, so the device can balance between arbitrary length of the workpiece.
★ the belt drive assembly can also be moved along the bed, convenient to drag the appropriate parts according to the workpiece.
★ reliable quality of equipment, the use of frequency conversion speed control system, motor soft start soft stop on the impact of the equipment is small, extended the service life of the equipment. Equipment can work continuously, maintenance is simple and convenient
Note: please contact us for more information about the equipment
Manufacturer standard configuration parameters
Equipment model yfw-1000a
The workpiece mass ranges from 20 to 1000 kg
The maximum diameter of the workpiece is mm 1800
The spacing between the two supports is mm 100-1600
The length of the bed is mm 2900
Mm 20-120 axis diameter range of the workpiece supported by the roller
Equilibrium speed r/min 150-1100
Minimum residual unbalance ≤1gmm/kg
Unbalance reduction rate % ≥90%
Motor power 11Kw
Speed regulation by frequency conversion
Universal joint torque 120Nm
Operating voltage three-phase four-wire AC 380V, 50/60hz
★ the above is the factory's standard configuration equipment parameters, we support the product, system according to the customer's demand for the length of the equipment to do the corresponding changes
★ the device can increase the Angle with the tracer function
